Virtual PC - Differencing Disks

During my internship I had to test against different kinds of products, and to be sure everything worked on a clean install of this product, I had to create multiple virtual PC’s. One method of doing this was to create one clean Windows 2003 installation inside Virtual PC and copy this image to a new folder for every different server I needed. This was the method I started with, but one disadvantage was that it required a lot of disk space, as the base image already required 1.8 GB.

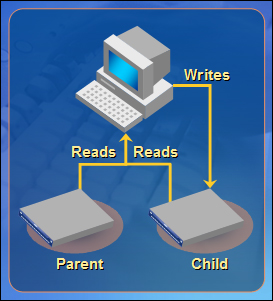

A solution to this problem was to use a feature of Virtual PC, called Differencing Disks. This allows for the creating of a base read-only image, which is called the parent, which can be shared with unlimited other virtual machines, the children.

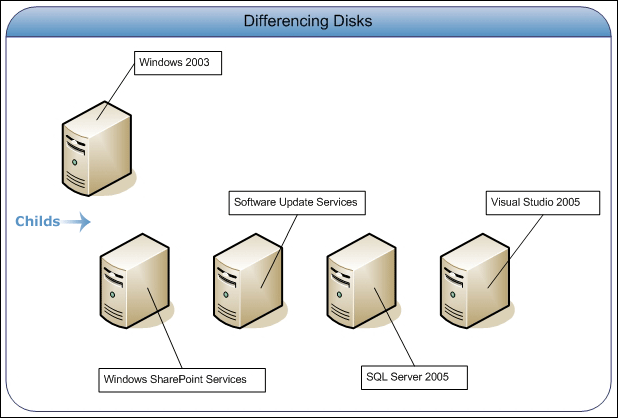

Every child stores their disk changes in a separate file, making it possible to have one clean Windows 2003 parent image, and having a child which only adds Windows SharePoint Services to a separate file. The combination of parent and child would then become a Windows 2003 machine running Windows SharePoint Services.

This way, having a lot of different children uses a lot less space than having to copy the complete base image each time.

Additionally this method also can be used on a network to provide complete base images to all network clients. Making it possible to create an archive of base images for each platform (Windows 98, 2000, XP, 2003, Linux, BSD, …) and placing them on a read-only network share, ready to be consumed by all users creating their own local child disks.
